Eant@yianttech.comExcellent Electrical Insulation
Stable dielectric performance for high-voltage equipment, battery packs and electrical systems.

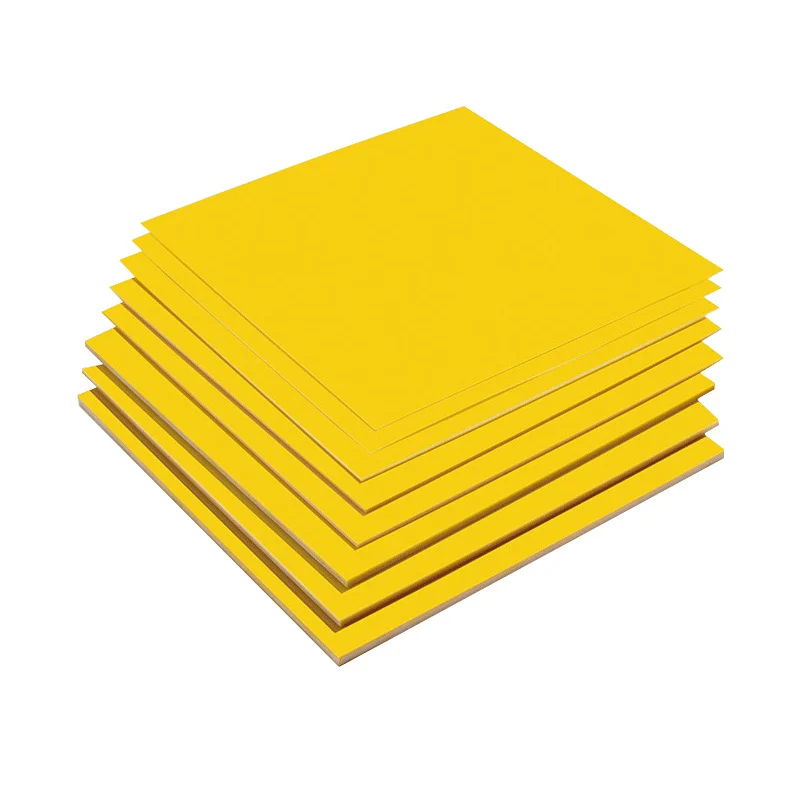

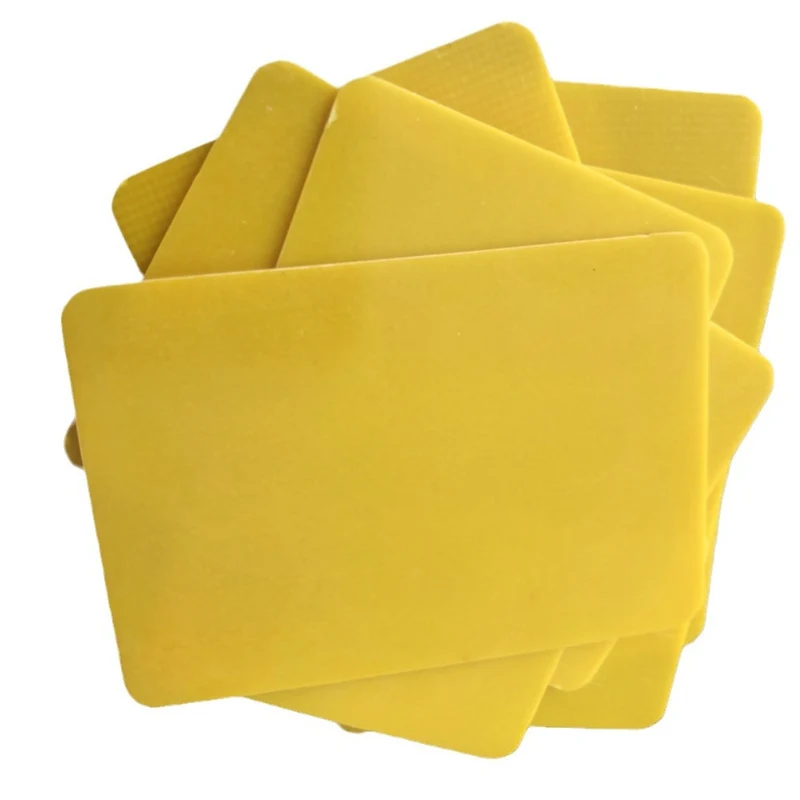

G10/FR-4 epoxy fiberglass laminate sheet features high mechanical strength, excellent insulation, dimensional stability and flame retardancy. Widely used in electrical insulation, PCB fixtures, precision machinery and electronics industries.
| Items | Parameter |
|---|---|
| Product Name | Epoxy Fiberglass Laminate Sheet |
| Material Grade | G10 / FR-4 / EPGC 202 |
| Standard Colors | Yellow / Aqua Green / Black |
| Thickness Range | 0.2–100 mm |
| Standard Sheet Size | 1020 × 1220 mm / 1020 × 2040 mm |
| Density | ≥ 1.85 g/cm³ |
| Flexural Strength | ≥ 340 MPa |
| Breakdown Voltage | ≥ 35 kV |
| Water Absorption | ≤ 0.20% |
| Flammability | UL 94 V-0 (FR-4) |
| Thermal Class | Class B / Class F |
| Customization | Cutting, drilling, milling, slotting and chamfering |
Key Features
High Mechanical Strength
Strong flexural and impact resistance for structural supports and precision components.
Heat & Flame Resistance
FR-4 options provide reliable heat resistance and UL 94 V-0 flame-retardant performance.
Flexible Customization
Available in multiple thicknesses, colors and custom-machined shapes according to drawings.
Product Details

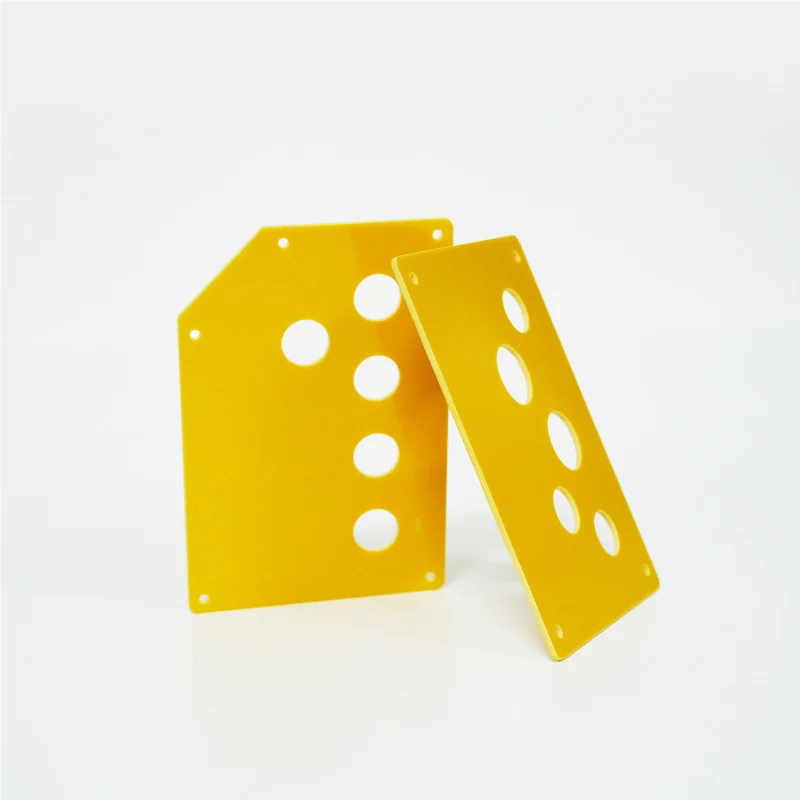

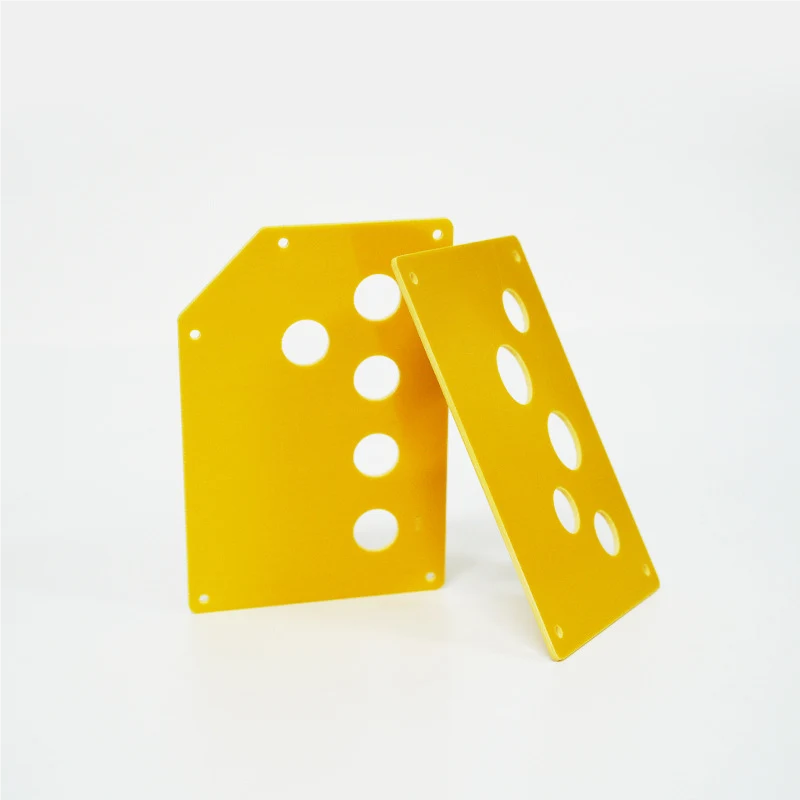

Precision Machining
Custom CNC milling, drilling, slotting, chamfering and profile cutting are available for complex insulation components.
- Made from 2D or 3D drawings
- Dimensional tolerance down to ±0.05 mm
- Prototype and volume production support
Stable Material Performance
Manufactured from glass cloth and epoxy resin under high temperature and pressure for consistent electrical and mechanical properties.
- Low moisture absorption
- Strong dimensional stability
- Reliable performance in demanding conditions
Wide Range of Specifications

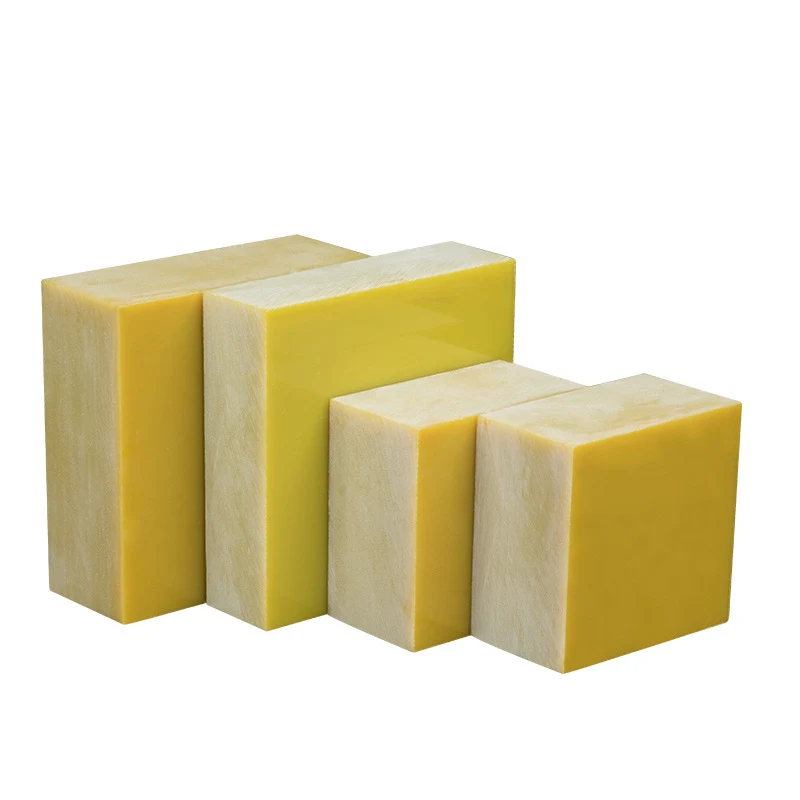

Thin sheets, standard plates and thick blocks are available for electrical insulation and structural applications.
- Thickness from 0.2 to 100 mm
- G10, FR-4 and EPGC grades
- Yellow, aqua green and black options
Product Applications
Epoxy fiberglass laminates are widely used as insulating barriers and structural components in battery systems, switchgear, transformers, test fixtures, industrial equipment and rail transit systems.
Battery & Energy Storage
Module barriers, busbar supports and high-voltage insulation parts.

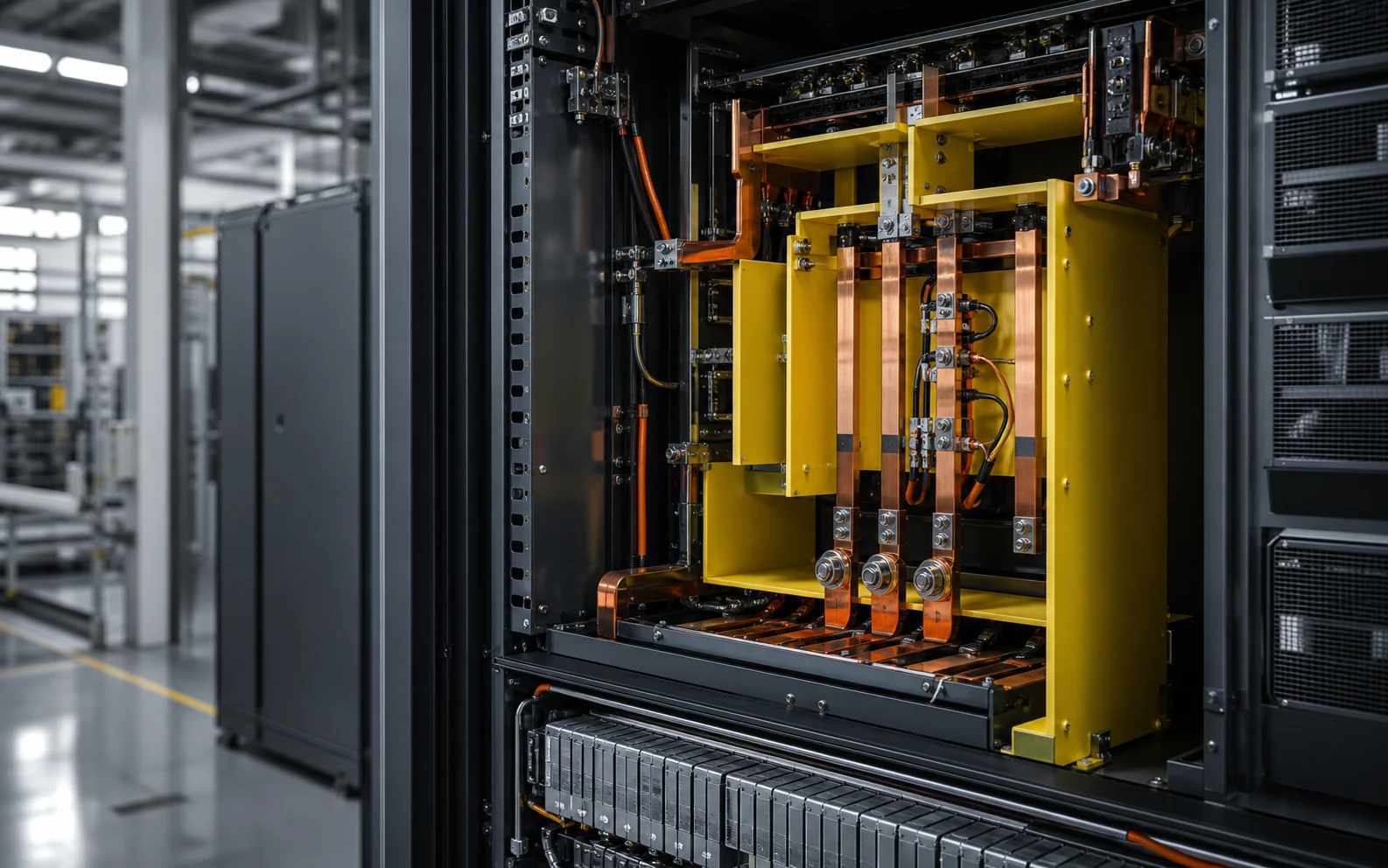

Electrical Equipment
Insulating structures for switchgear, transformers and power distribution.
Precision Manufacturing
Fixtures, test boards and wear-resistant machined components.
Rail Transit
Flame-retardant insulation for onboard power and electrical systems.
One-Stop Battery Accessory Supply
In addition to epoxy laminates, our product portfolio covers a broad range of insulation materials and battery pack accessories for simplified sourcing.

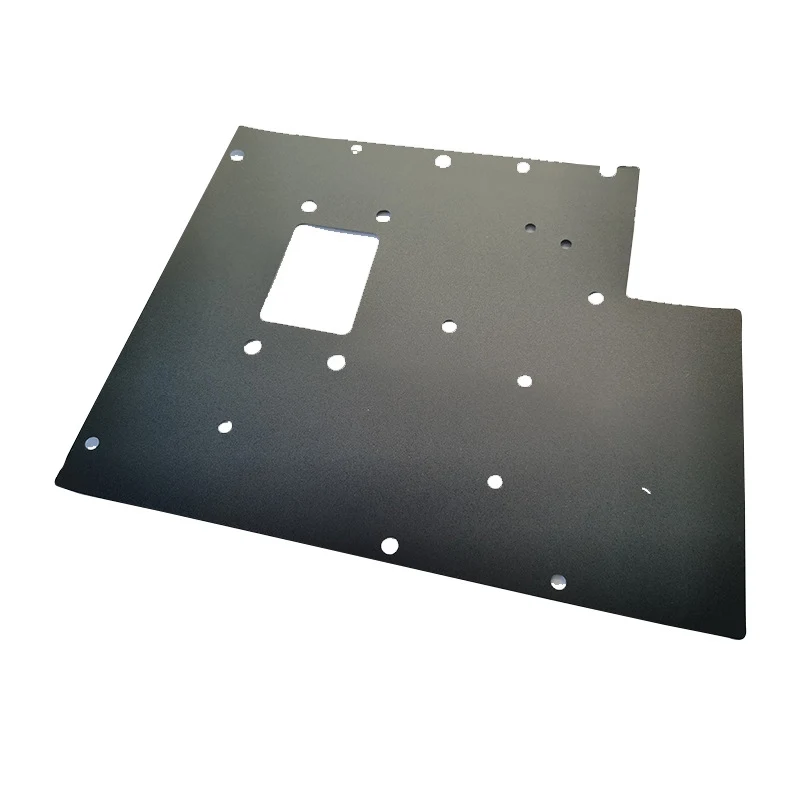

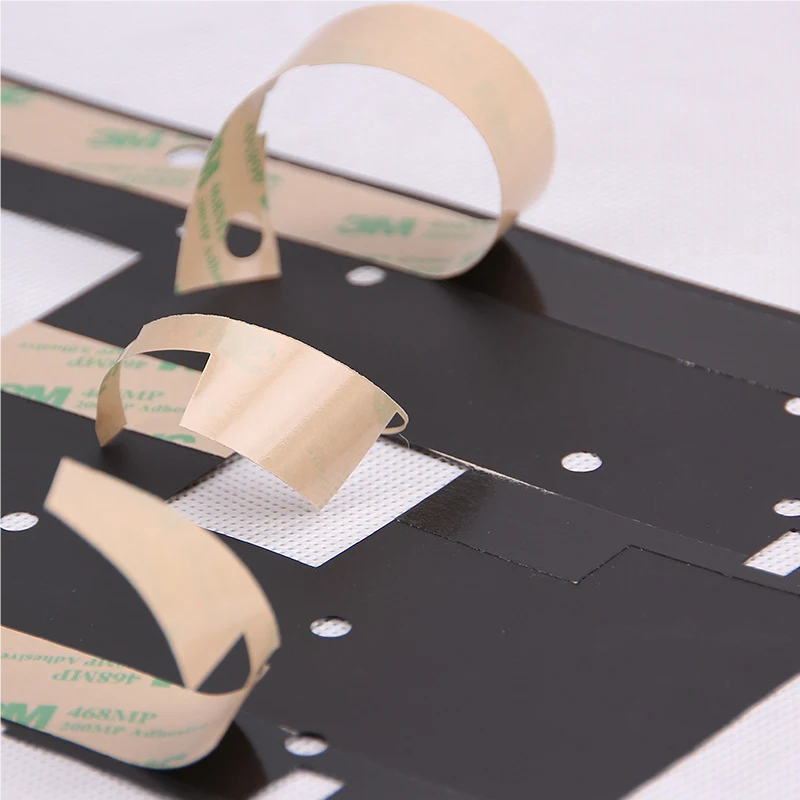

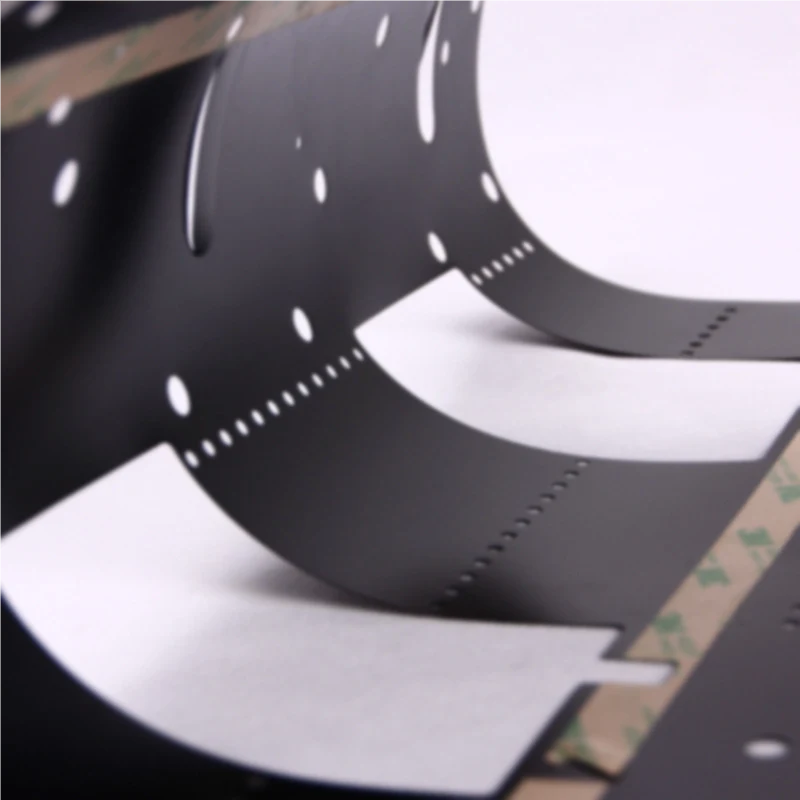

Insulation Paper

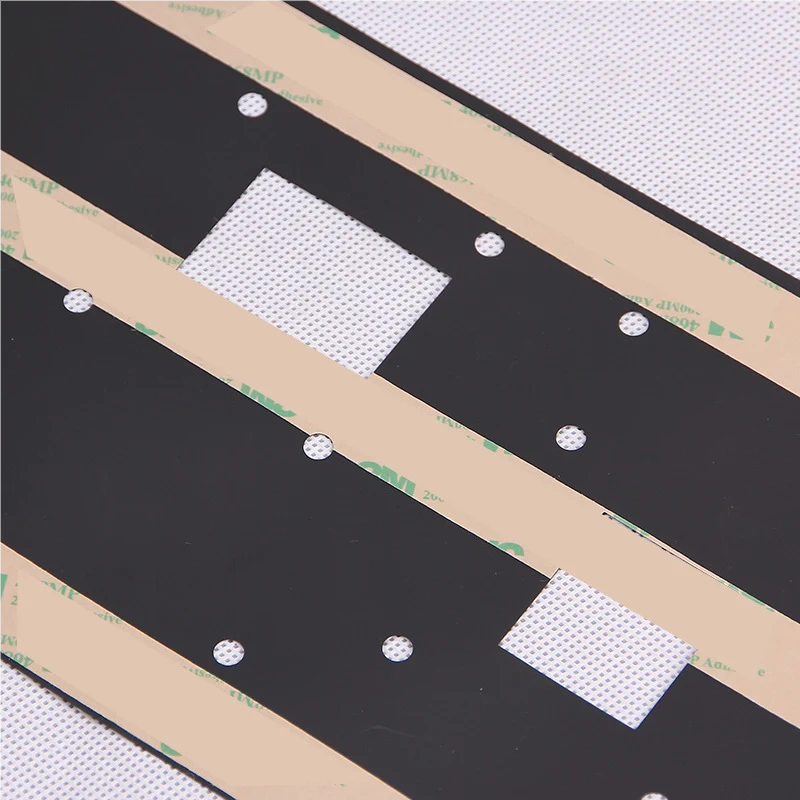

Adhesive Tapes
EVA Foam
Battery Connectors
Company Introduction
Yiant Technologies is a Guangzhou-based supplier serving battery pack manufacturers, electrical equipment companies and industrial customers worldwide. Our portfolio covers insulation paper, adhesive tapes, EVA foam, Mylar, nickel strips, connectors, battery cases, battery indicators and epoxy fiberglass laminates.
Supported by specialized production and converting resources, we provide material selection, die cutting, slitting, CNC machining, sampling and coordinated supply services. Our goal is to help customers simplify sourcing while improving product consistency and project efficiency.
Material Test Reports & Compliance
Selected third-party test reports for insulation paper supplied within our product portfolio.
Q&A
Q

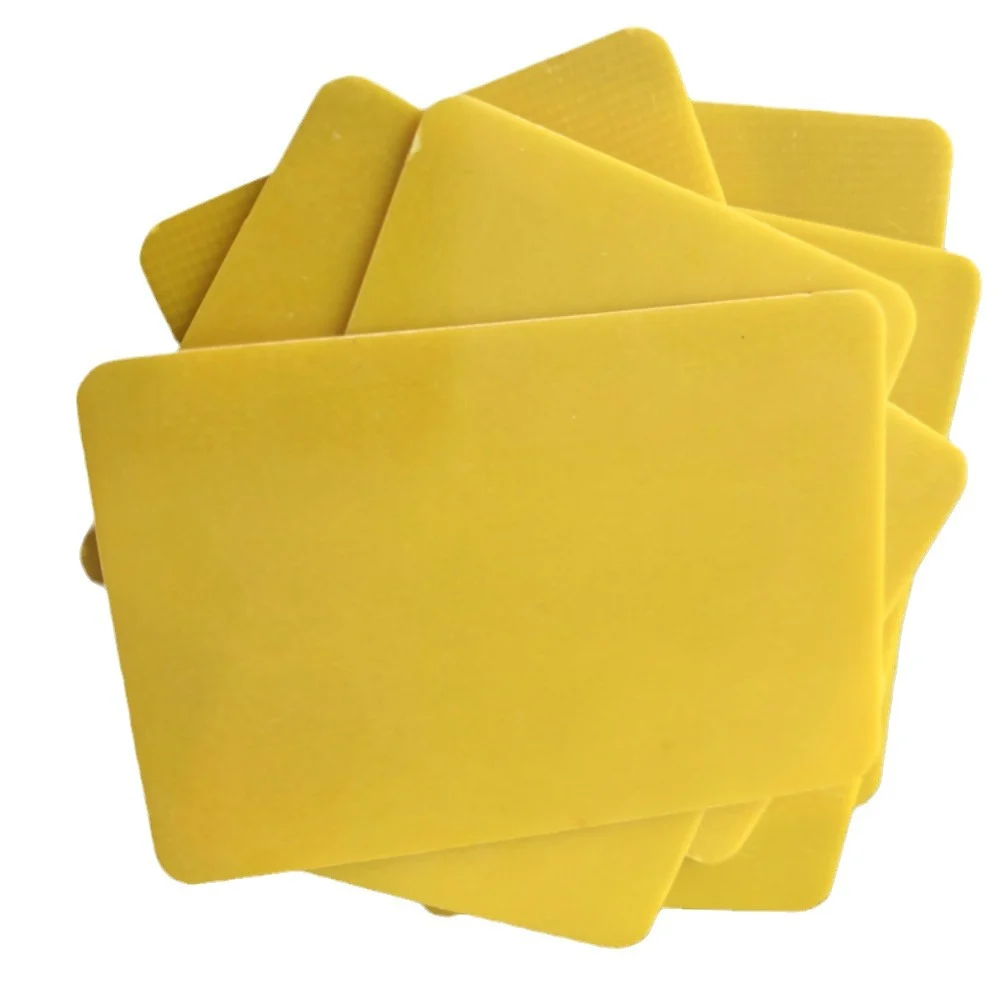

Can I order samples for testing?
Yes. Samples can be arranged for standard materials. Availability and lead time depend on the selected grade, thickness and machining requirements.
Q
Do you accept OEM and custom machining orders?
Yes. We support cutting, drilling, milling, slotting, chamfering and custom profiles based on your drawings or samples.
Q
What information is required for a quotation?
Please provide the material grade, thickness, dimensions, tolerances, quantity and 2D or 3D drawings when available.
Q
Can you provide material test documents?
Relevant documents can be supplied according to the selected product grade and project requirements.
Q
What is the minimum order quantity?
The minimum order quantity depends on the material grade, thickness, dimensions and machining requirements. Standard sheets and custom parts may have different order quantities.
Q
What is the typical production lead time?
Lead time depends on material availability, order quantity and processing complexity. A confirmed production schedule will be provided with the quotation.
